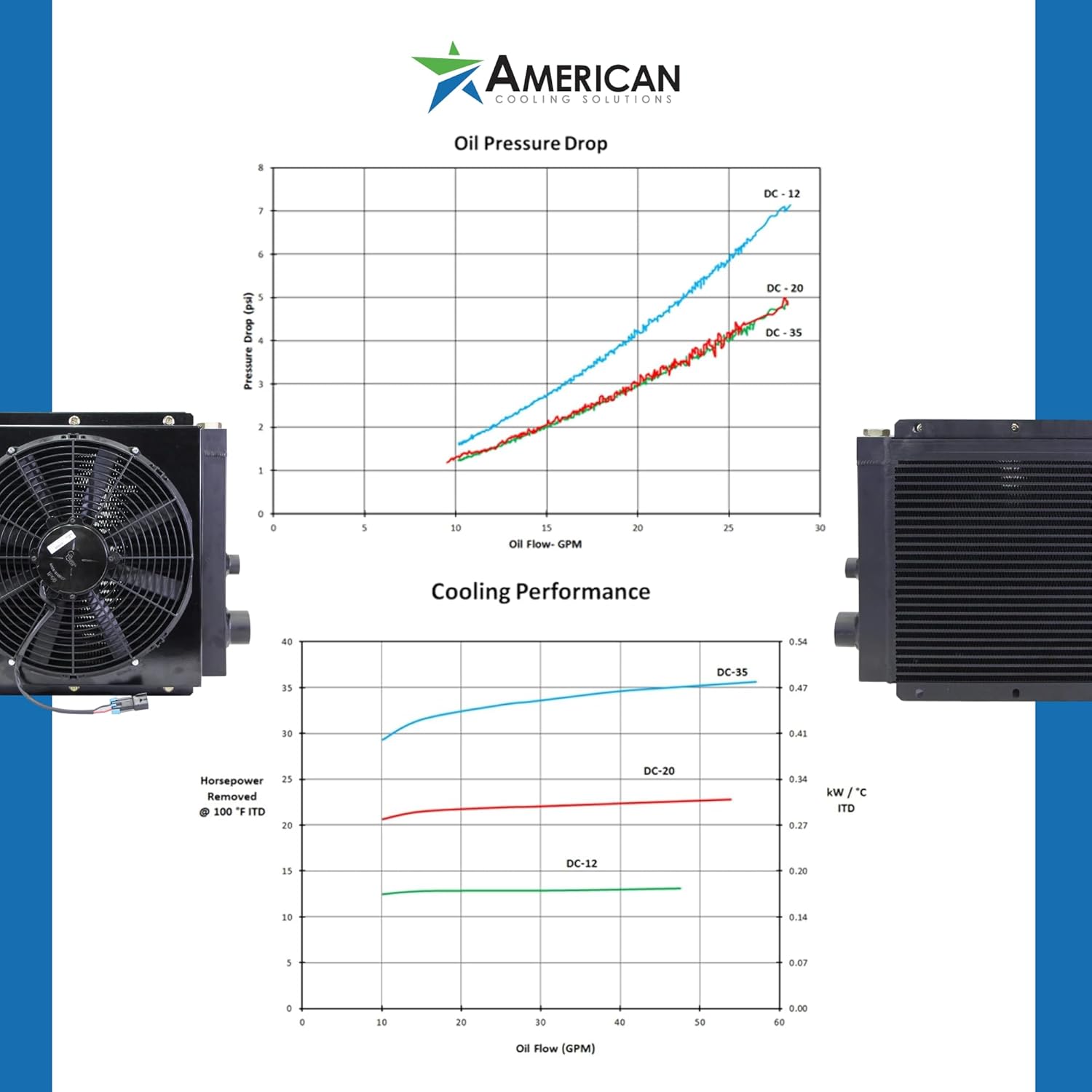

Mobile Hydraulic Oil Cooler Fan & Shroud Model DC-35 (12 Volt W/OC-64) With Or Without Bypass Valve (8 Bar (116 psi) Bypass)

Heavy Duty Aluminum Bar and Plate Hydraulic Oil Cooler w/ Fan & Shroud With or W/O Bypass Valve Assembly needs to be installed on the Low Pressure side of hydraulic circuit Applications: Fits Mobile and Industrial Hydraulics Our Part Number: 24107 – No Bypass 24500 – 2 Bar (29 psi) Bypass 24501 – 5 Bar (73 psi) Bypass 24502 – 8 Bar (116 psi) Bypass Core (Finned area) Dimensions: 19.7” x 19.7” x 2.56” Inlet: -20 SAE O-Ring (1-5/8-12 UN-2B) Outlet: -20 SAE O-Ring (1-5/8-12 UN-2B) Overall Dimensions: 26.82” x 22” x 8.5” Replaces: Cool-Line D36 Cool-Line D36-12 4UJF8 LDC-033 Max Working Temp: 250°F Max Working Pressure: 360 psi Oil Flow (GPM): 0-110 Fan Data: 12V DC Electric Motor 22AMP Current Draw MetriPack 280 Connector (Male and Female connectors included)

• Fits Heavy Duty Aluminum Bar and Plate Construction
• 4 Variations of Bypass Ratings
• No Bypass, 2 Bar Bypass, 5 Bar Bypass, 9 Bar Bypass
• #20 SAE O-ring connections, 12V Fan
• Comparable to D36, 4UJF8, LDC-033
