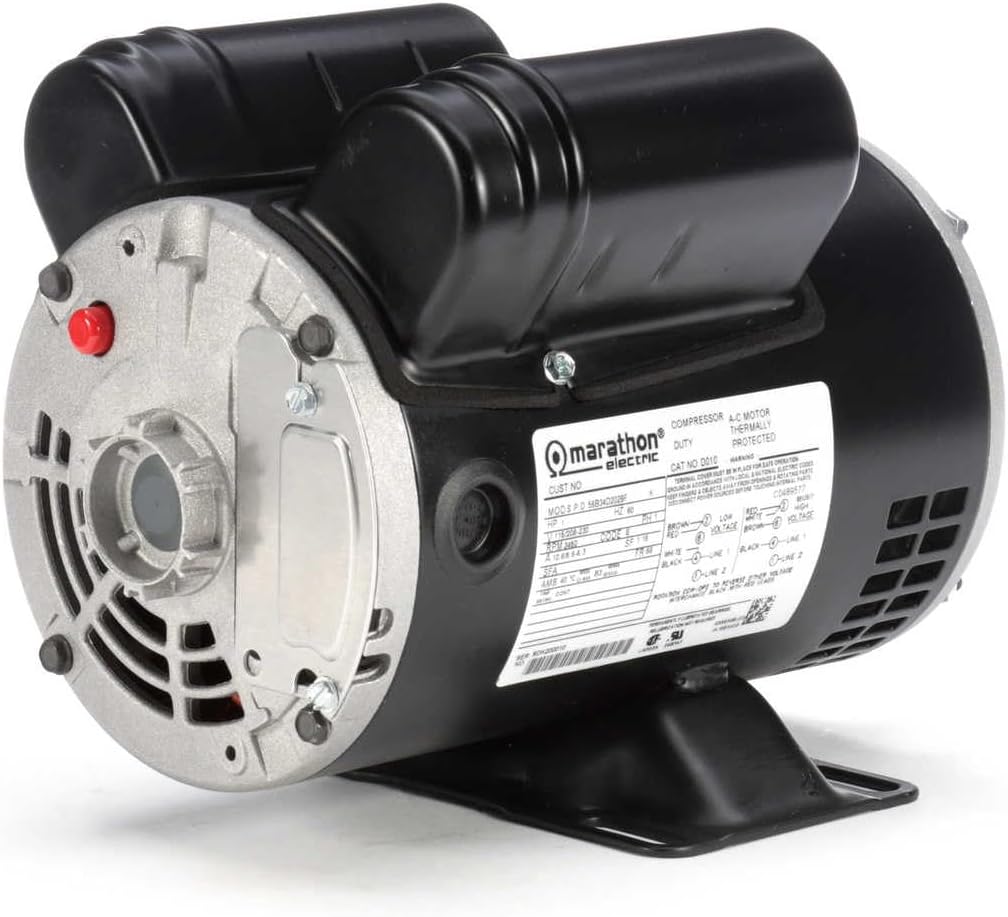

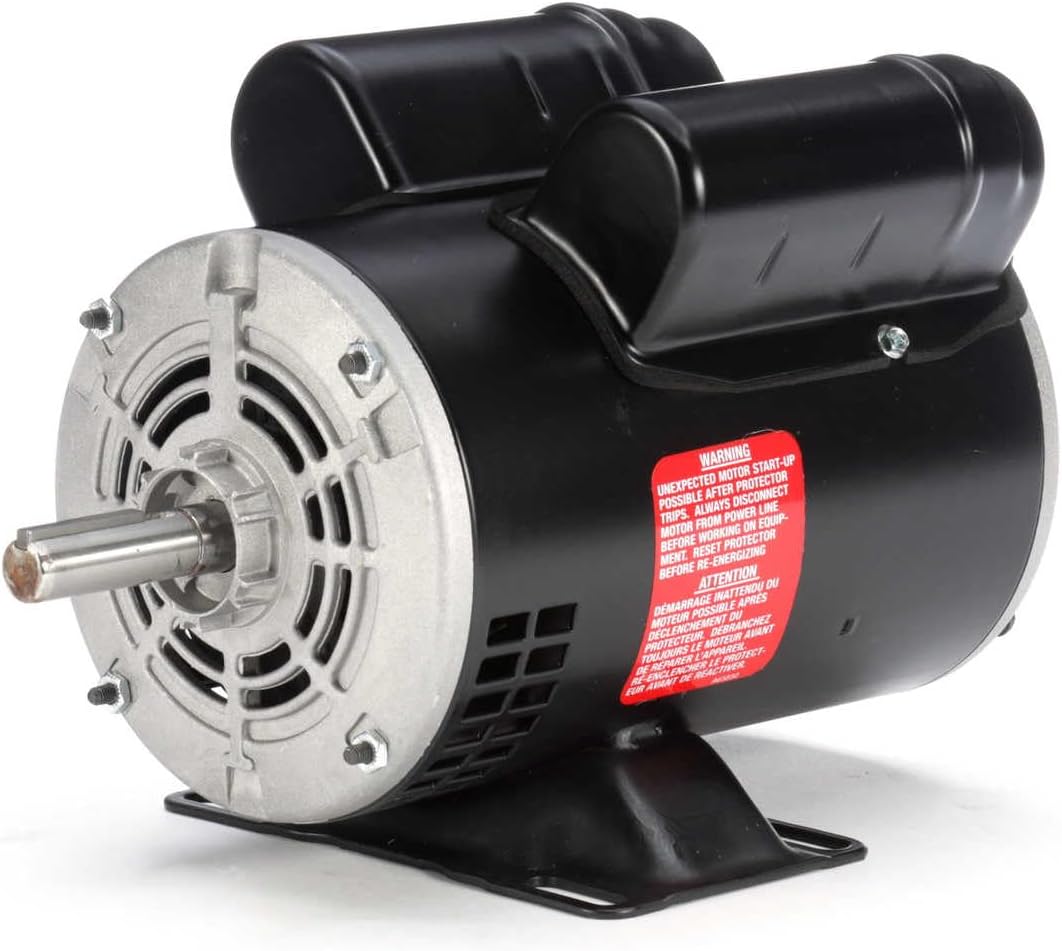

Marathon Motors 1 HP Commercial Duty Air Compressor Motor,Capacitor-Start/Run,3450 Nameplate RPM,115/208-230 Voltage

1-Phase Commercial-Duty Open Dripproof Air Compressor Motors Type: capacitor-start Mounting: rigid welded base Max. ambient: 40°C Bearings: ballDirect replacements for selected air compressors including Dayton, Speedaire, Ingersoll-Rand, Campbell Hausfeld, Sanborn, Champion, Coleman, Quincy, and others. Mechanical features provide long life in high-tension, belt-type loads, which typically shorten motor life. High breakdown torque ensures dependable service.UL Recognized and CSA Certified.Note: Use on other applications voids warranty. Item: Commercial Duty Air Compressor Motor Motor Application: Air Compressor Motor Design: Capacitor-Start/Run Motor Enclosure Design: Open Dripproof HP: 1 Nameplate RPM: 3450 Frame: 56 Voltage: 115/208-230 Hz: 60 Phase: 1 Full Load Amps: 10.6/5.5-5.3 Motor Mounting Type: Rigid Base Motor Thermal Protection: Manual Ins. Class: B Motor Service Factor: 1.15 Motor Bearings: Ball Max. Ambient Temp.: 40 Degrees C Motor Shaft Rotation: CW/CCW Motor Shaft Design: Keyed Shaft Dia.: 5/8" Shaft Length: 1-7/8" Duty: Continuous Standards: UL Recognized, CSA Certified Capacitor Included: Yes RPM Range: 3001-3600

• Commercial-Duty Motor: Built for high-tension, belt-type loads, ensuring long life and dependable service
• Capacitor-Start Design: High breakdown torque for reliable air compressor operation
• Open Dripproof Enclosure: Allows for operation in dirty or dusty environments
• Versatile Compatibility: Direct replacement for various air compressor brands, including Dayton, Ingersoll-Rand, and Campbell Hausfeld
• Rigid Base Mounting: Provides stability and durability for continuous use
• Manual Thermal Protection: Allows for safe operation and extended motor life
