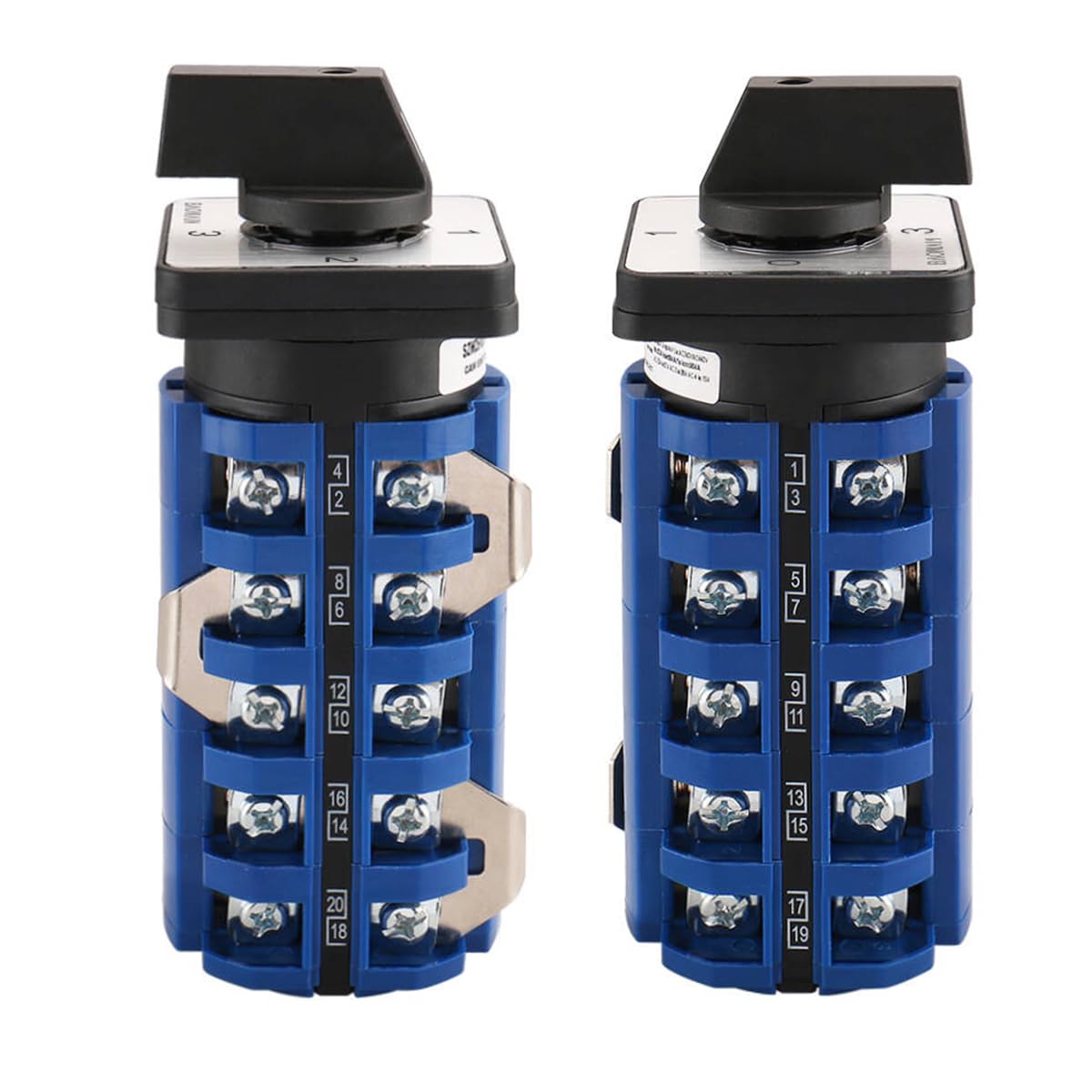

Baomain Rotary Changeover Switch 660V 63A 4 Position 5 Poles 18 Terminals Cam Switch, SZW26-63-ZC.FD08.5
4.1 (22 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211067110 | Release Date | 2026/04/04 | List Price | US$36.00 | Model Number | 211067110 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Feature: 4 positions (0-1-2-3) ,5 poles, 18 screw terminals, with locking action type. It's uitable for the thickness between 1mm to 5mm of the mounting board. Rotary Changeover Switch with Silver Alloy Contacts and Flame Retardant PC Housing material.Changeover switch mainly suitable for electrical wiring in the power switch and Squirrel cage type asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit.
- Positions : 4 Positions (0-1-2-3); 5 Poles with 18 Terminals
- Ui : 660V ; Ith : 63A; AC-23A Ie:57A AC-3 Ie: 36A AC-4 Ie: 15A Uimp：4kV
- Size : 175 x 65 x 65mm / 6.8" x 2.5" x 2.5"(L*W*T)
- Weight: 670g; Material: Plastic, Metal
- Package Includes: 1x Cam Switch , Screw Accessories
| Model | SZW26-63-ZC.FD08.5 |
|---|---|
| Terminal | Screw |
| Brand Name | Baomain |
| Unit Count | 1.0 Count |
| Item Weight | 670 Grams |
| Switch Type | Rotary |
| Circuit Type | 5-way |
| Contact Type | Normally Closed/Open According to Wiring Image |
| Manufacturer | Baomain Electric Co., Ltd |
| Material Type | Metal, Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Clamp |
| Current Rating | 63 Amps |
| Operation Mode | OFF-ON-ON-ON |
| Item Dimensions | 2.56 x 2.56 x 6.89 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 660 Volts |
| Specification Met | CE |
| Included Components | Screw accessories |
| Number of Positions | 4 |
| Upper Temperature Rating | 40 Degrees Celsius |
| International Protection Rating | IP20 |
