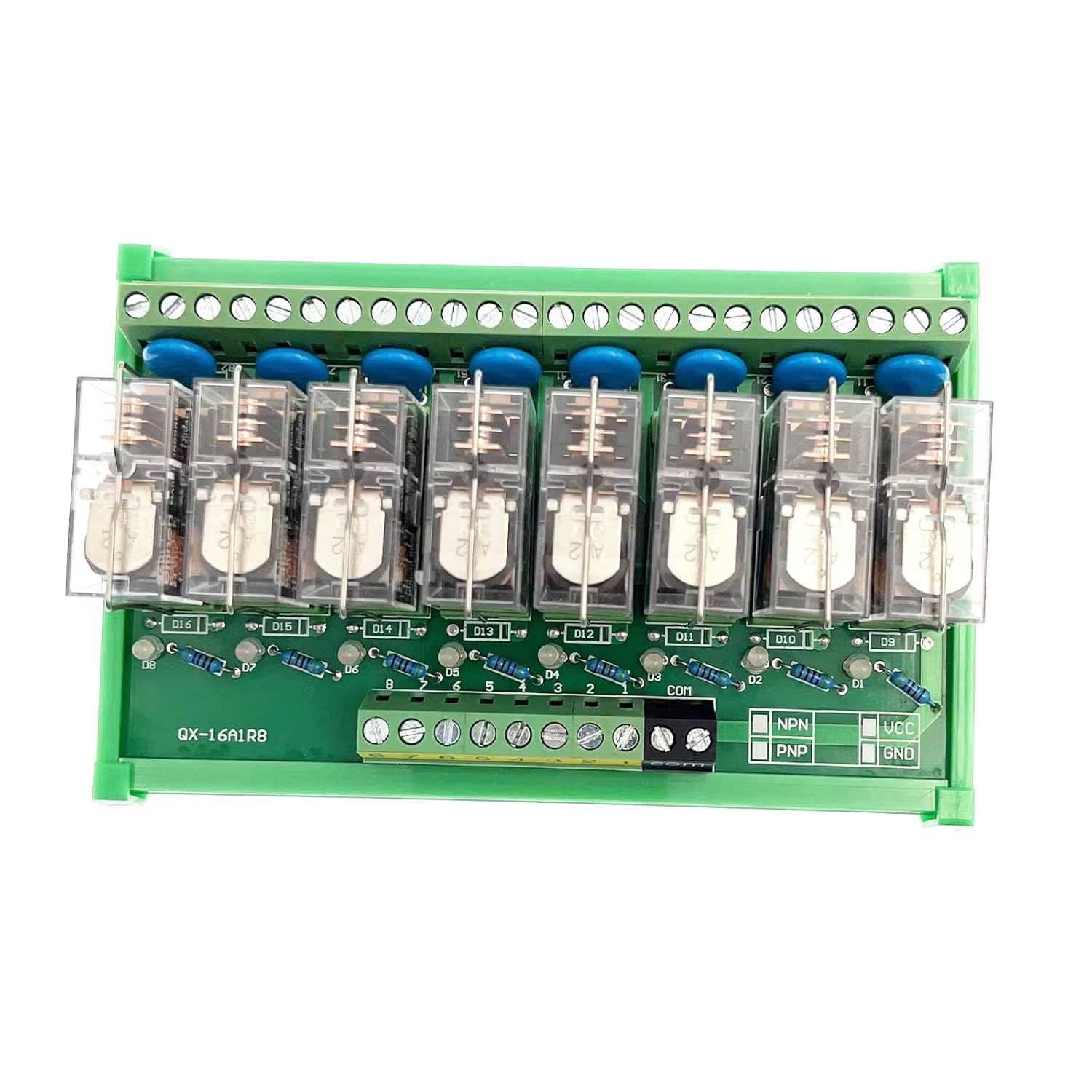

8 Channel AC/DC 24V Rail Mount Relay Interface Module PNP NPN SPDT 16A Pluggable Power Relay, G2R-1-E

Relays are used where it is necessary to control a circuit by an independent low-power signal, or where several circuits must be controlled by one signal. Applicable to PLC, Arduino, DSP, ARM, ARM, MSP430, TTL logic microprocessor systems and time relays etc., amplifying the control current of outputs, to protect key control systems not being destroyed. Technical Specifications: Input Operation Voltage: DC/AC 24V Relay Mounting: PCB Pluggable Switching Voltage: 30VDC/250VAC Contact Rating(Current): 16A Coil Current: 21.8mA Coil power: 0.53W each Contact type: 1 normally open, 1 normally close, single pole Max frequency: 18000 times/h Coil resistence: 50mΩ Operate time(at normal voltage): ≤10ms Release time(at normal voltage): ≤10ms Input/Output connections: Screw terminal block Wire range: 0.2 to 2.5mm²(24 AWG to 14 AWG) Stripping length: 6 to 7mm(0.24 to 0.28 inch) DIN rail mountable: 15/28/35mm NPN PNP Compatible Package includes: 1 x 8 Channel AC/DC 24V Rail Mount Relay Interface Module

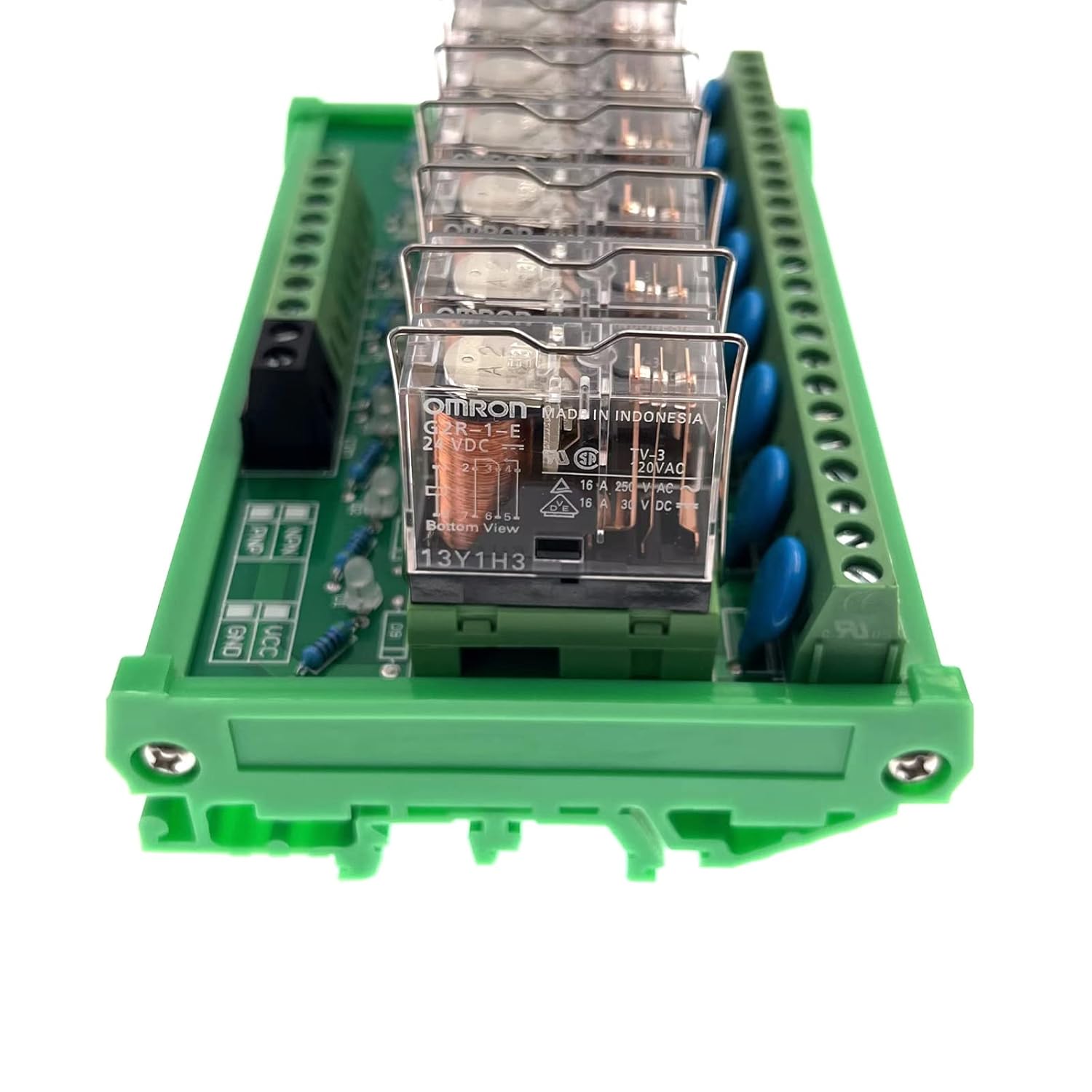

• Omron G2R-1-E SPDT power relay, Switching current up to 16A at 250VAC or 30VDC. Strong reliability.
• With current feedback diode protection, Relay status indicator LED, surge suppression protection and overvoltage protection are provided for each relay channel.
• Each relay circuit is independent, with a base, pluggable, compatible with other brands of relays, easy to replace and maintain.
• DIN rail mounting, can support width 35mm, 32mm and 15mm rail. It is convenient and quick to install, firm and stable, and more convenient to disassemble.
• Input Output connections by screw terminal block, Wire range 24 to 14AWG (0.2 to 2.5mm2). NPN PNP in common use, AC DC in common use.
